1. Software description
The mobile app CamHi (Android version) is a kind of tool that manages network cameras and can be used to monitor network camera images and other functions in LAN and Internet on Android systems. It supports search to add ID and manually enter camera IP in LAN; supports one key to configure WIFI, add a device, delete and edit function; supports audio monitoring and intercom; supports snap photos to mobile phone; supports image quality level Settings and other functions.
First connect the camera power supply, after about 40s, will hear a prompt sound, if not heard, please press the RESET button in the equipment base for 10s.
Note: 1. Please use the camera self-contained power adapter, so as to avoid damage the device

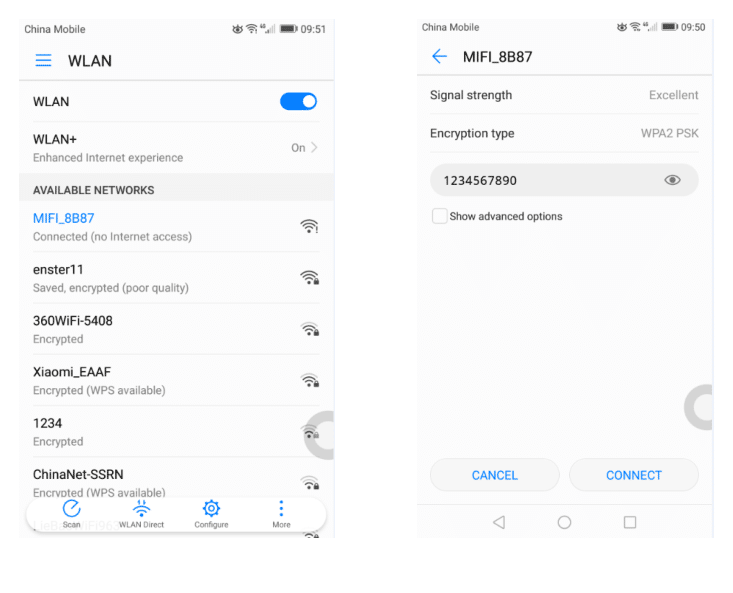

2. One key to configure WIFI
After installing the mobile app, the mobile phone is connected to WIFI, through the phone WIFI settings, search out the camera’s AP’s SSID, SSID format is MIFI_XXXX, mobile phone connection SSID, Password is 1234567890

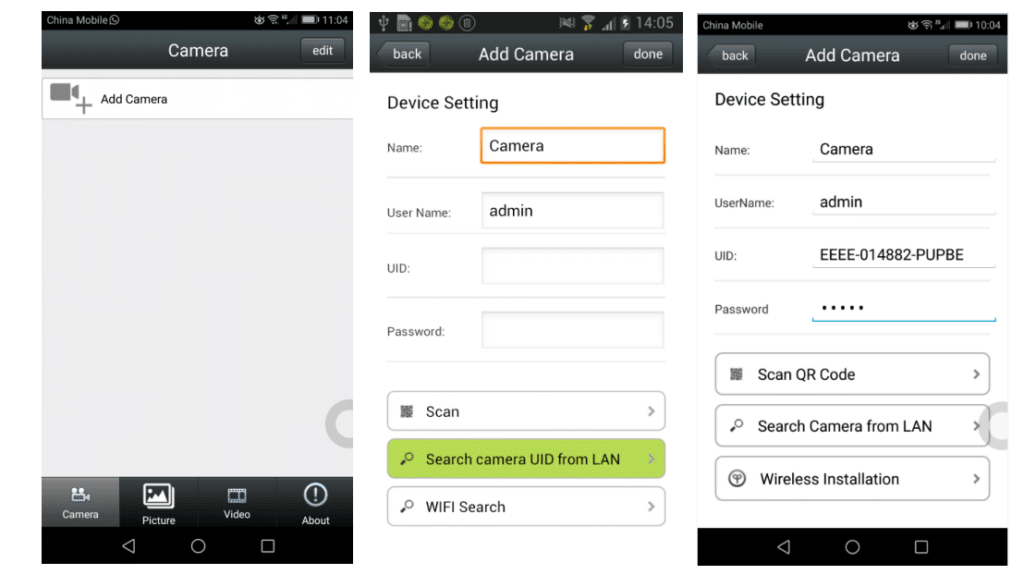

3. Add Camera
3.1. LAN Search
Click to add a camera, enter into adding camera interface, type in camera
- Search: Click the LAN Search button and search for the network camera on the mobile phone’s wireless network.
- Enter the camera password(the default password is admin).
- Click done in the upper right corner.
4. Delete Camera
Click Edit, click， will prompt whether to delete the camera, click YES
5. View the video
After adding the camera for a few seconds, waiting for the camera to connect automatically, when online instructions, it means you can view the camera video:
Camera status illustration:
Connecting: Now the camera is connecting with the network, according to different networks, it costs different time
Online: means the device is connected normally, click to view videos

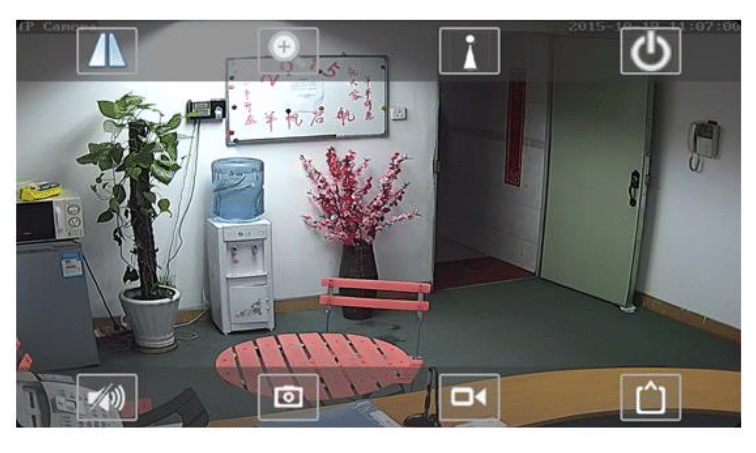

6. Video Interface illustration
Monitoring off
Monitoring on
when the monitoring icon turned to
press
to realize intercom（You can not loosen the icon
Press it for a long time, if loosened, the intercom will turn off）
click this icon, it will snap photos to the mobile phone (The photos save to a Snapshot file
folder in mobile phone)
Local Record off
Local Record on
click this icon, can choose resolution type: HD or smooth
HD: It is connected to the first stream
smooth: It is connected to the second stream
7. Camera parameters
When the camera is online, click and enter into the interface of the camera parameter setting
7.1. Change password
can change the access password of the camera (only can change the administrator password)
7.2. Motion Detection Alarm setting
Open Motion detection: motion detection on or off
Motion detection sensitivity:
High, medium, and low can be set. High: the sensitivity value is 75; the medium sensitivity value is 50; the low sensitivity value is 25
7.3. Alarm Linkage
Alarm Notifications
Click ON, open alarm Notifications;
SD Card record while the alarm
Choose on means the alarm video will be saved to an SD Card;
Email alarm and send pictures
Choose on, means it will send pictures to the specified mailbox when the alarm
save pictures to the FTP Server
Choose on, meaning it will save alarm pictures to a specified FTP server
save videos to the FTP server
Choose on means alarm videos save to specified FTP server
7.4. Timing record
Video file length: 15-900seconds can be set, default is 600 seconds
whether video on: on off can be set, default is off
7.5. Audio Setting
Input type
Linear input and microphone input can be
set when the audio input type is a microphone input, the input volume and output volume are 80 and 95;
when the audio input type is linear input, the input volume and output volume are 15 and 95;
7.6. Video settings
code rate
The device code rate of the first stream and second stream can be self-define; the scope range is 32kbps-6144kbps
frame rate
The device frame rate of first stream and second stream can be self-defined;
Video coding level
1-6 can be set, and the default is 1; the smaller the value, the better the image level, and the bigger the stream
Video system
50HZ and 60HZ can be set
7.7. SD Card setting
Can obtain the total space of the SD card and the size of the available space, can format SD card
7.8. Device time setting
- The device time can synchronization mobile phone time
- can set the device time zone, after setting it successfully, the device will restart
7.9. Email Setting
Eg: sending mailbox is QQ mailbox
Smtp server：smtp.qq.com
Server port：465
Secure connection： SSL
user name and password are QQ account, and
password
Receive address： the mailbox that receives alarm
pictures
Send address: sender’s mailbox address, if it is QQ mailbox, you need to fill in the QQ mailbox address (the same as the user name)
Theme and information can be filled in casually After completion, click Apply, then click Test to know whether you can send an alarm email
7.10. FTP Setting
FTP server： fill in the FTP address
Server port： fill in the FTP port；
fill in the user name and password set on the FTP server
after completing, click Apply; then click Test to know whether you can send pictures to the FTP server
7.11. Device information
can obtain device information, including network status, user connection number, IP address, Subnet mask, gateway, DNS and so on
8. Other settings
Mirror and Flip
click, can set Mirror and Flip
Lens zoom
click can set the lens to zoom in, zoom out, focus add, focus reduction, and other operations
Note: This function needs the lens supporting zoom
Preset settings and calls
click, can set presets and call presets;
Note:
This function needs the device supporting PTZ
9. Local pictures
click, enter into the playback interface
- Local pictures are saved by ID
- Long press one picture can delete it

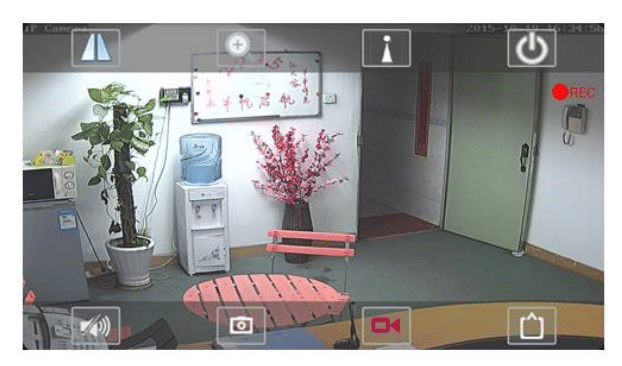

10. Video
10.1. Local Video
: Click the icon, the icon is red
; In the video icon appears on the right
side,
; Save the path in the “VideoRecording” folder of the video;
10.2. Video playback
10.2.1. Local Video playback
Click on the video icon, go into the video playback interface, select local, and click to play back the video equipment. Then, pop out the video list and click on the video playback. If the phone has installed more than one player, please select a player to play.
10.2.2. Online video playback
click, enter into the watching interface Can playback the videos on an SD Card, including timing video and alarm video
